Gallery / F20-UK-R2 Stairs

Innovation design and quality manufacturing, all at exception value.

1 / 3
2 / 3
3 / 3

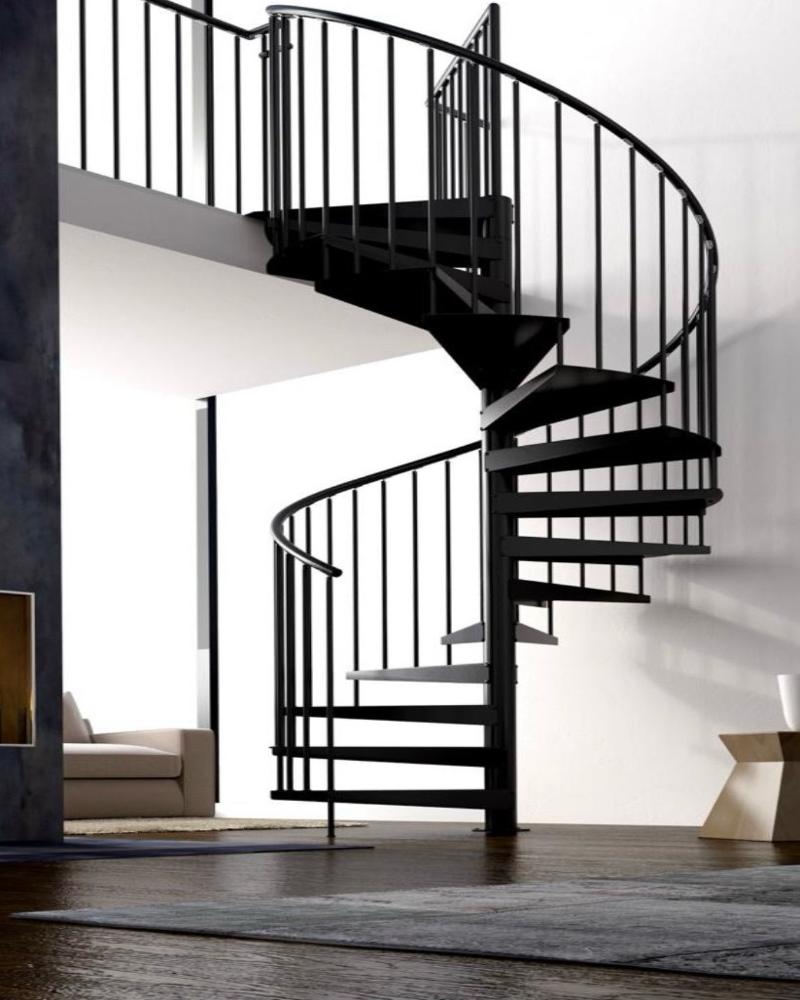

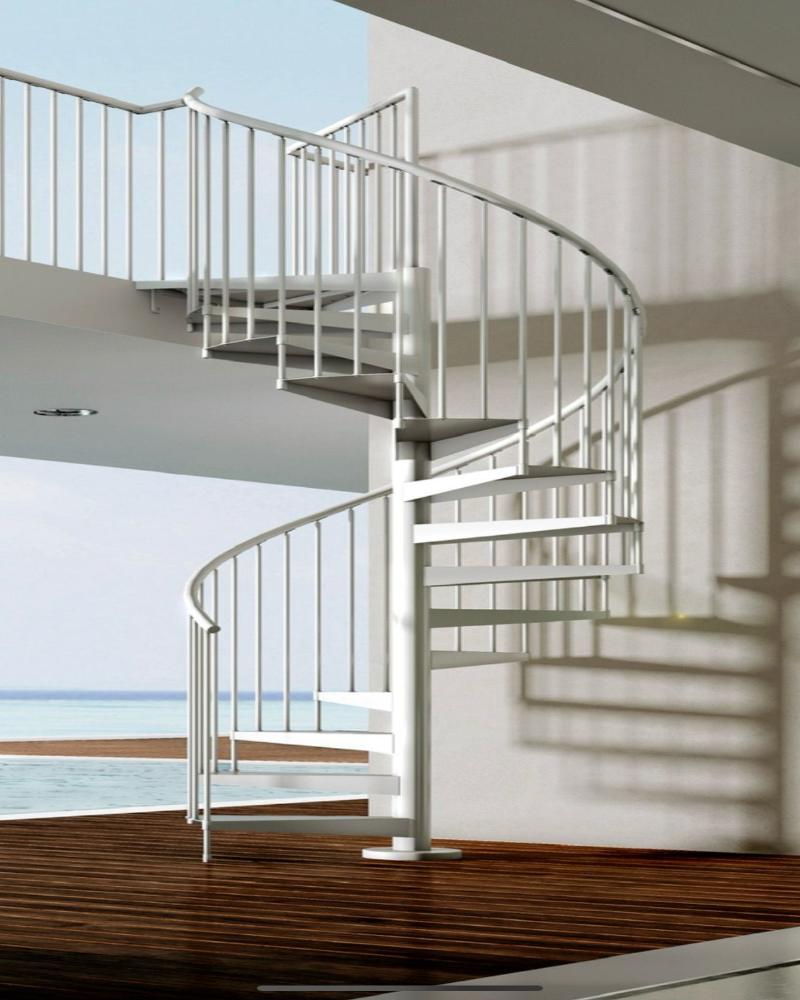

Kit Spiral Stairs

The staircase for every solution, characterised by simple and clean lines, robust and easy to assemble. Adaptable to any space, thanks to the universal landing that applies to any type of hole or mezzanine.

The structure

Composed of cylindrical elements in painted steel interposed between the steps with adjustment flanges for the risers

The steps

Made of press-folded sheet metal, are bolted to the spacers and seamless.

The railing

Mod. R2 UK, composed of Ø20 steel tube columns, base and top joints with special nylon elements. Handrail in plastic material that can be moulded on site based on the curvature of the railing, alternatively, in beech wood with sectors that can be adapted to the slope of the staircase. Space between columns =/< di 100 mm.

The metal treatment

The metal Is oven-baked with epoxy powders.

Certified product CE European Technical Approval - ETA 13/0877

Technical Data Values
Total Staircase Height min. 1000 max. 6000
Risers 210 to 230
Treads 30°
Staircase Diameter 1100 - 1200 - 1300 - 1400 - 1500 - 1600
Hole Shape Round - Square - Mezzanine
Metal Colour White - Grey - Black - Bronze
Railing Type mod. R2T UK
Suitable for Environments Interiors
Intended Use Secondary Private Use
