Kit Spiral Stairs

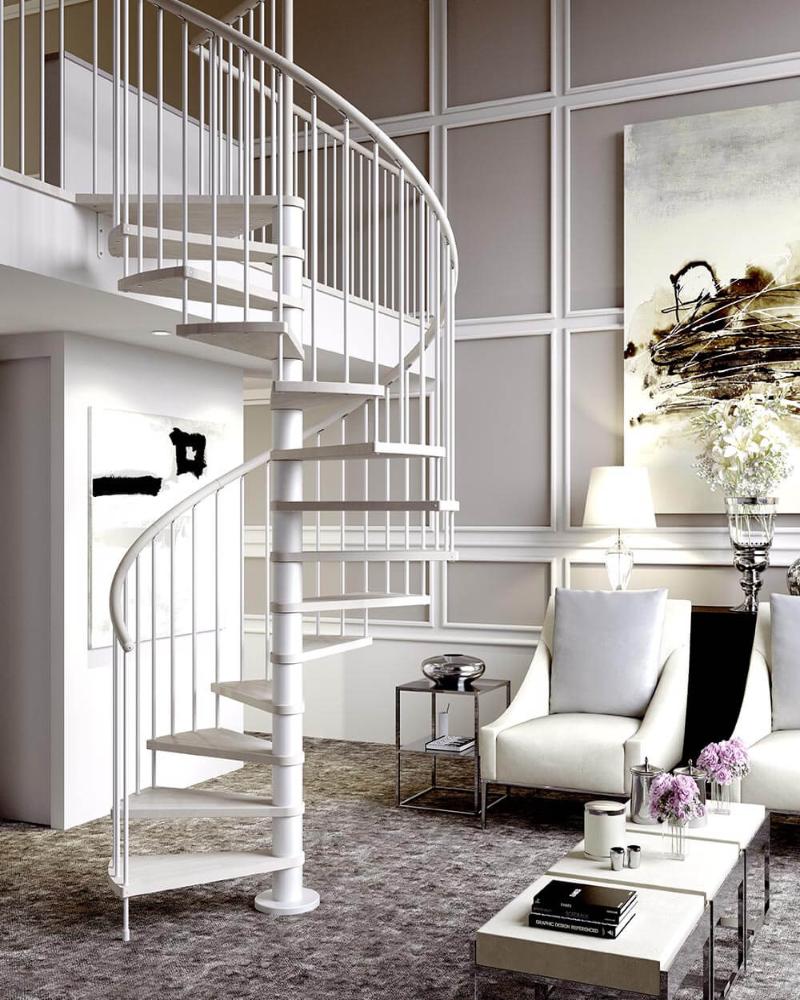

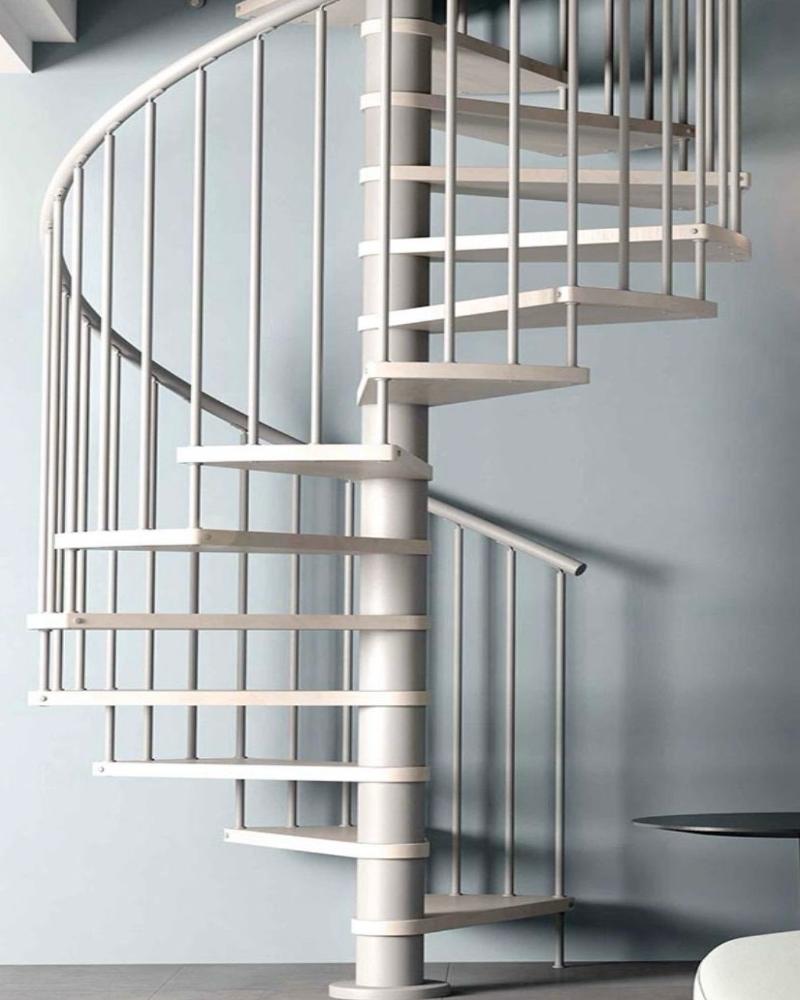

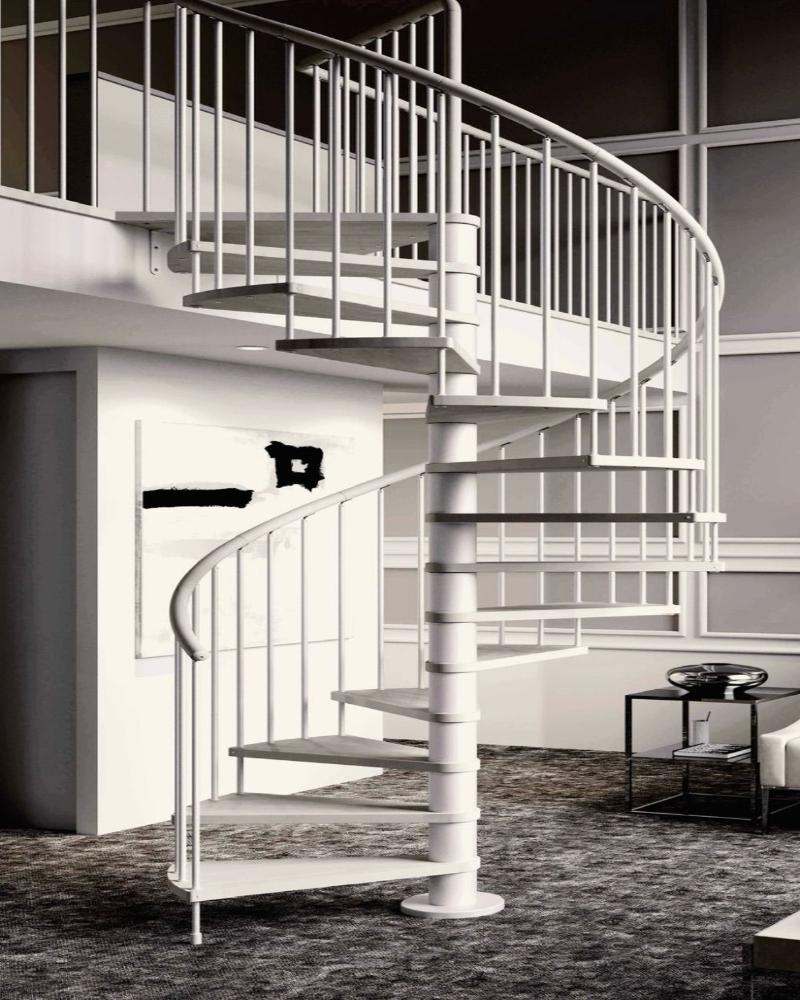

The spiral staircase par excellence, beautiful, robust and easy to assemble at a very attractive price. Ideal for indoor use, its simple and clean lines adapt to any type of environment, from modern to classic. Each element of the staircase is designed to fit the unique style of the product.

The structure

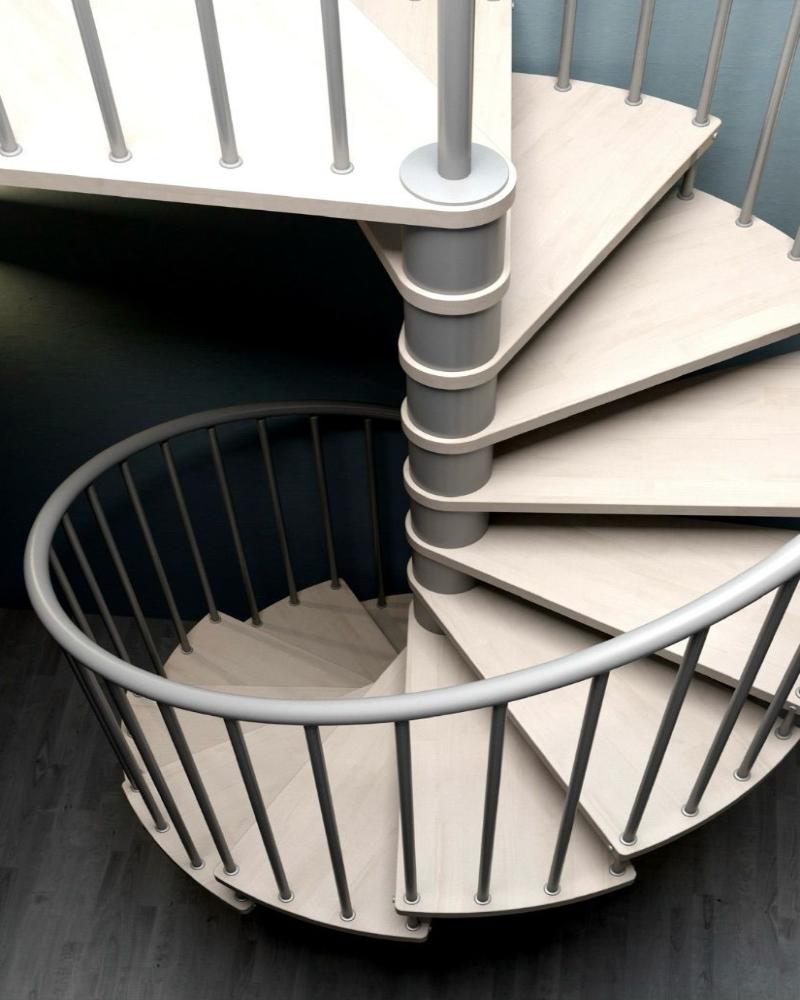

Composed of metal cylinders placed between nylon flanges. The number of flanges inserted between the cylinders determines the height of the risers.

The steps

40 mm thick laminated beech wood, 45° chamfered edges finish and walking surface with Brush treatment.

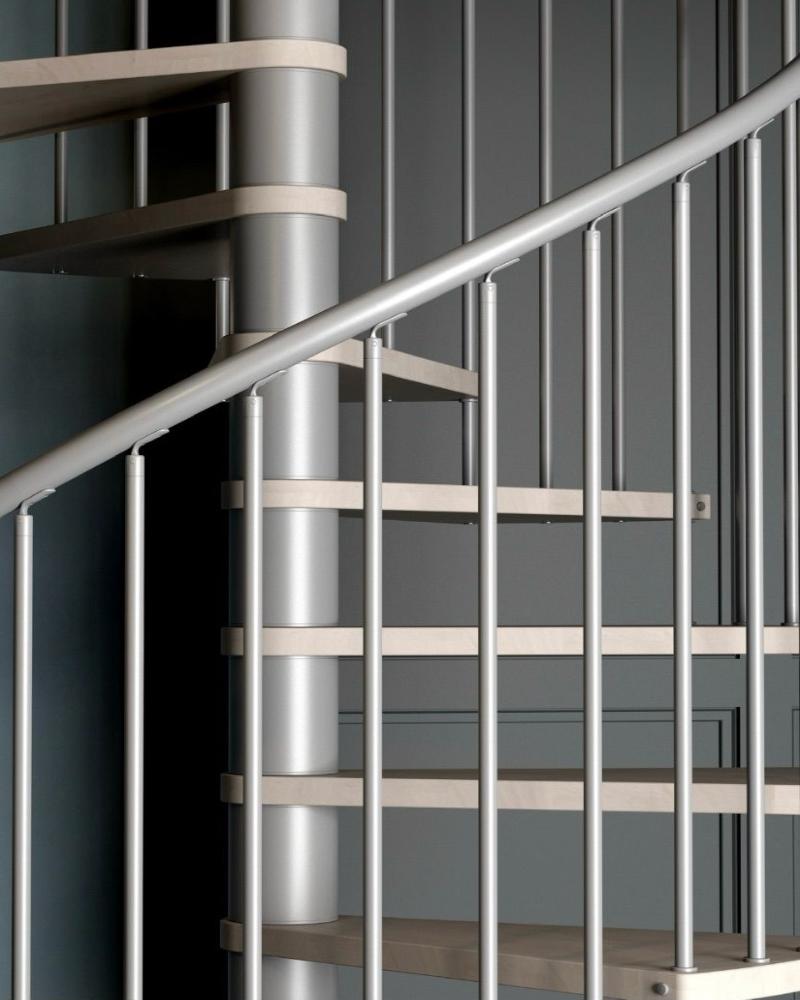

The railing

Mod. R2, composed of Ø20 steel tube columns, base and top joints with special nylon elements. Handrail in plastic material that can be moulded on site based on the curvature of the railing, alternatively, in beech wood with sectors that can be adapted to the slope of the staircase. Space between columns =/< 100 mm

The metal treatment

Oven-baked epoxy powders in basic colours.

The Wood Treatment

With oil and hard waxes pigmented in the shades of the basic colors.

Certified product CE European Technical Approval - ETA 13/0877
Technical data Values
Total staircase height min. 1000 max. 5000
Risers 210 to 230
Treads 30°
Staircase diameter 1100 - 1200 - 1300 - 1400 - 1500 - 1600
Hole shape Round - Square - Mezzanine
Metal colour White - Grey - Black - Bronze
Wood treatment Brushed
Wood finishes Natural Oil
Wood tone Oak - Walnut - Stone - Wenge
Railing type mod. R2T UK
Suitable for environments Interiors
Intended use Secondary private use
